M2.10-968

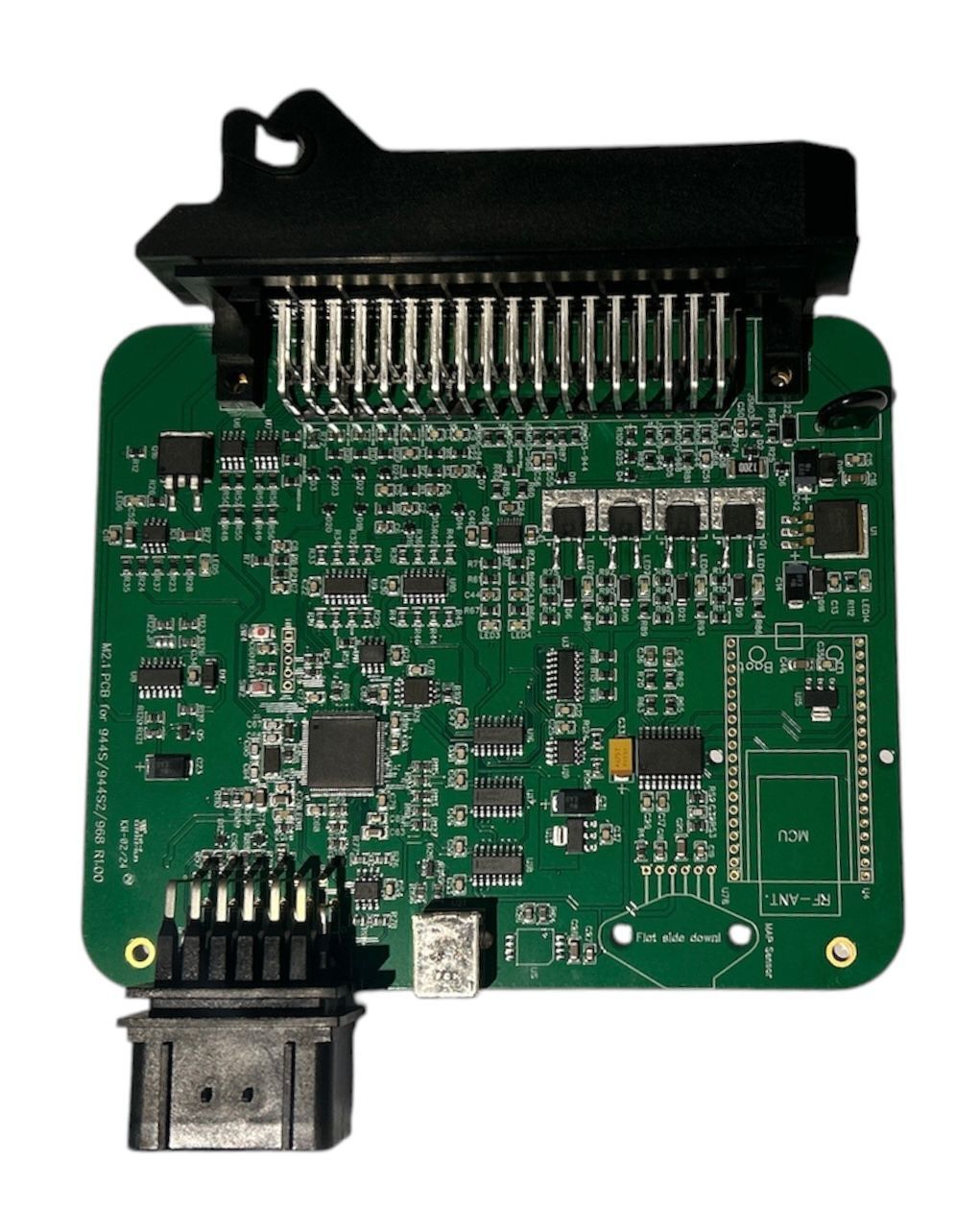

The M2.10-968 is a CLASSICECU designed Speeduino compatible Plug & Play ECU module to fit into the stock Porsche 968 Manual, Tiptronic isnt supported yet.

It’s coming in at 162 mm (W) x 174 mm (L) x 30 mm (H).

This allows the user to replace the OEM stock ECU, just Plug & Play.

It has been designed to be Speeduino compatible and will come with the latest Speeduino firmware on.

The full I/O range is as follows :

Interfaces:

• On-board USB
• CAN-Bus
• WiFi - not included
• Bluetooth - not included

Outputs:

• 1 ignition channel to drive the OEM distributor
• 4 injector channels
• OEM Idle valve
• VVT
• Fuel pump
• Fan
• Tachometer
• 5V Sensor supply
• Check Engine Light
• Economy

Inputs:

• AFM Stock sensor
• MAP sensor (MAP) - not included
• Throttle position sensor (TPS)
• Coolant temperature sensor (CLT)
• Air temperature sensor (IAT)
• Optional MAP sensor for barometric compensation - not included
• O2 sensor (narrowband or wideband)
• 2 x Knock sensors ( WiFi/BT module included) - not supported yet
• 1 x VR OEM stock sensor
• 1 x Hall OEM stock sensors
• VSS or Gear detection
• Fuel pressure sensor
• Oil pressure sensor
• Air Condition
• Starter Motor
